Products Description

This Automatic Disc injection molding machine is specially used for plastic overmolding processing of hardware inserts. We know that hardware usually requires overmolding to perfectly combine metal and plastic. Our fully automatic disc injection molding machine is specially designed for this process.

The vertical disc hardware coating injection molding machine plays an important role in the field of hardware injection molding. The sealing and quality of the product are improved through coating technology, and it is widely used in manufacturing in many industries.

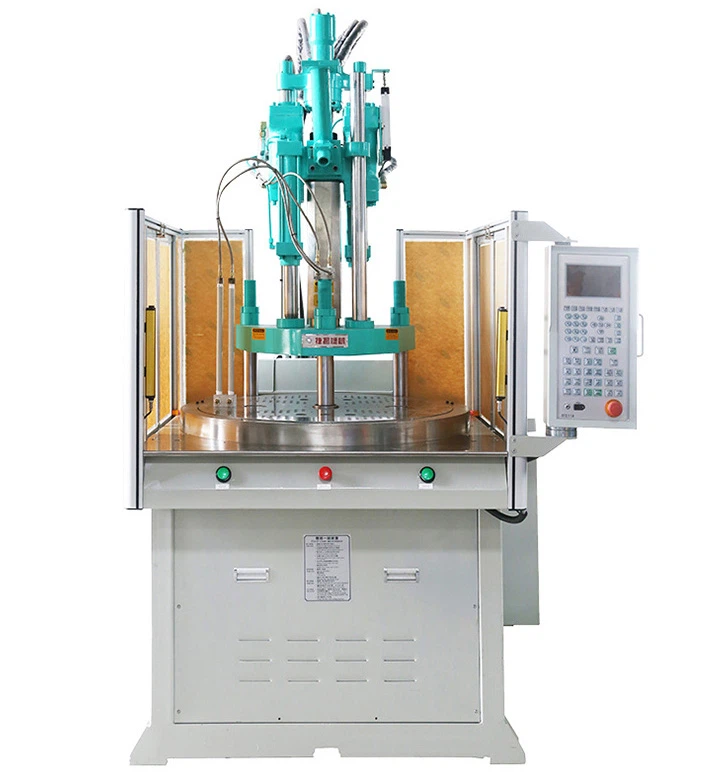

202401031609212

Products features

Disc injection molding machine is a common injection molding equipment. It has the following characteristics and advantages:

Multi-station design: Disc injection molding machines usually have multiple stations, which can perform injection molding, cooling, demoulding and other operations at the same time to improve production efficiency.

High degree of automation: It can realize automated production, reduce manual operations, and improve production accuracy and consistency.

Small footprint: Compared with traditional injection molding machines, disc injection molding machines have a smaller footprint and are suitable for production sites with limited space.

Wide scope of application: It can be used to produce various plastic products, such as toys, stationery, electronic product casings, etc.

XCX-550R2
Screw Diameter(MM)		mm	Ф32	Ф36	Ф40
Theoretical Injection Volume(cm3)		cm3	128.6	162.7	226
Injection Weight(PS)		g(oz)	121.5(4.25)	153.8(5.4)	201(7.08)
Max.Injection Pressure		Mpa(kgf/cm2)	201(2050)	158.85(1620)	128.6(1312)
Injection Rate		cm3/s	86.8	109.8	135.6
Injection Speed		mm/s	108
Injection Stroke		mm	160
Screw Speed Rotation		r.p.m	0-200
NO.of Temperature control			3+1
Nozzle Out From Platens		mm	≥45
Clamping Force		KN(tf)	539(55)
Clamping Stroke		mm	200
Min.Mold Thickness		mm	180/280
Max.Opening		mm	380/480
(L*W)Distance Between Tie Bars
(L*W)Max.Mould Size		mm	340340/400300
(L*W)Rotary table Size		mm	Φ980
Ejector Distance		mm	100
Ejector Force		KN(tf)	26.5(2.7)
System Pressure		Mpa(kgf/cm2)	13.7(140)
Oil Tank Capacity		L	280
Electric Power		KW(HP)	11(15)
Heater Power		KW	5.3
Machine size	L*W	m	2.34*1.64
Machine Dimensions	H(min/max)	m	2.56/3.1
Machine Weight		tf	3.5

Finished products pircures for your reference：

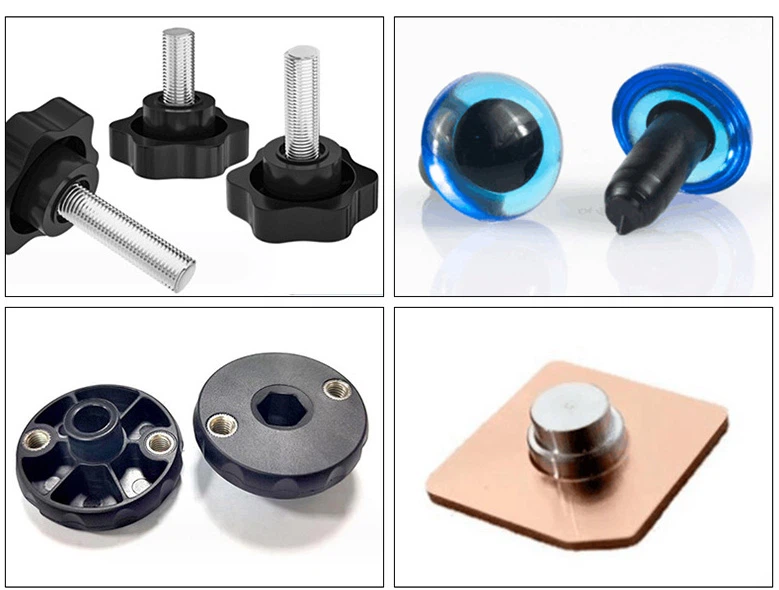

overmolding samples

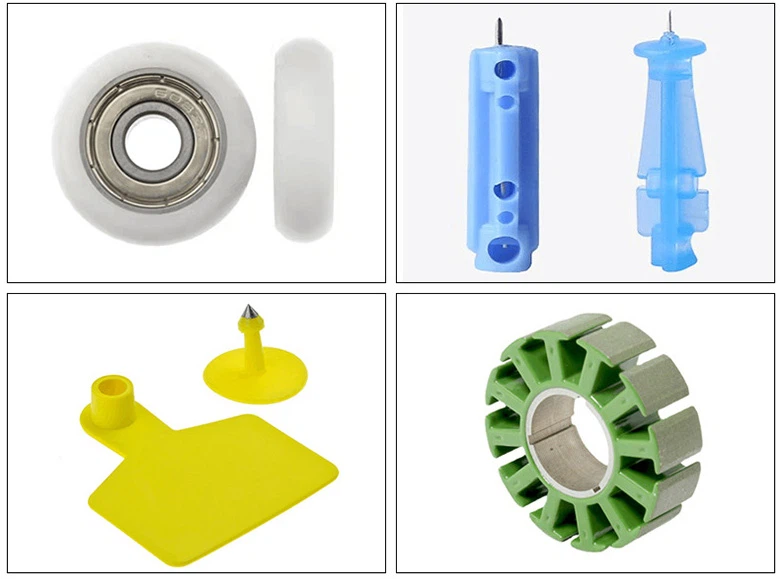

overmolding sample

advantages of our hardware overmolding machine

Source manufacturer of injection molding machine

Space Utilization Efficiency

Due to their vertical design, vertical disc injection molding machines usually have a small footprint and are suitable for use in limited production sites. This improves the space utilization efficiency of the production line.

Efficient production

The disc injection molding system allows multiple injection molding cycles to be performed simultaneously, thereby increasing production efficiency. This is very beneficial for mass production.

Convenient loading and unloading of molds

Since the working platform is disc-type, it is easier to load and unload molds. This simplifies the mold change process in production and reduces downtime.

Stable injection molding process

The disc motion provides a relatively smooth injection molding process, helping to maintain consistent product quality. This is very important for applications with high product quality requirements.

Multi-station injection molding

Disc designs often feature multiple stations, allowing multiple injection molding processes to be performed at the same time, further increasing production efficiency.

Suitable for complex parts

Since the injection molding process is vertical, the vertical disc injection molding machine is suitable for the production of complex parts that require multi-axis injection molding.

Less waste generation

During the injection molding process, materials are used relatively efficiently, reducing waste generation. This is in line with the concept of sustainable production.

Suitable for insert injection molding

The vertical disc injection molding machine is also suitable for insert injection molding, that is, other components are inserted during the injection molding process, increasing the possibility of manufacturing multi-functional products.
