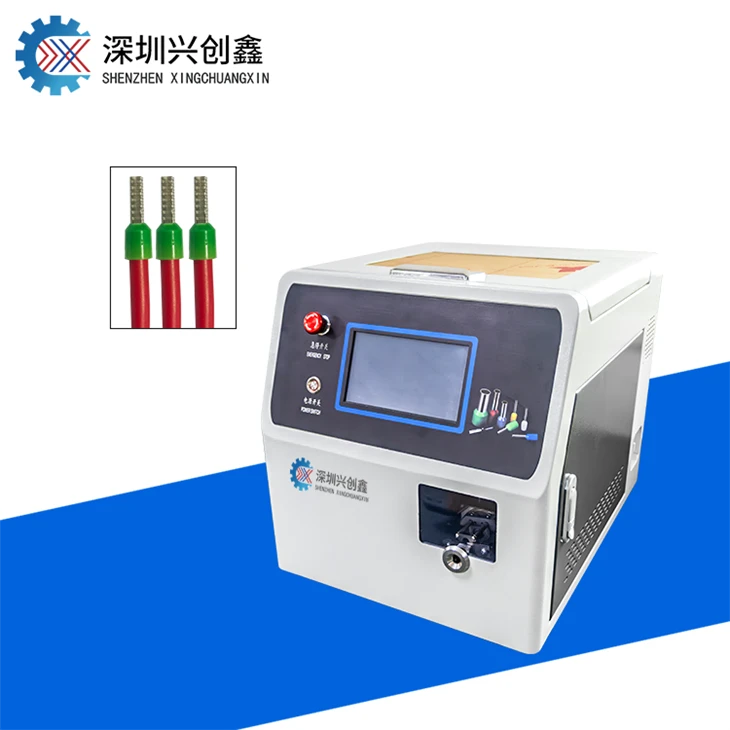

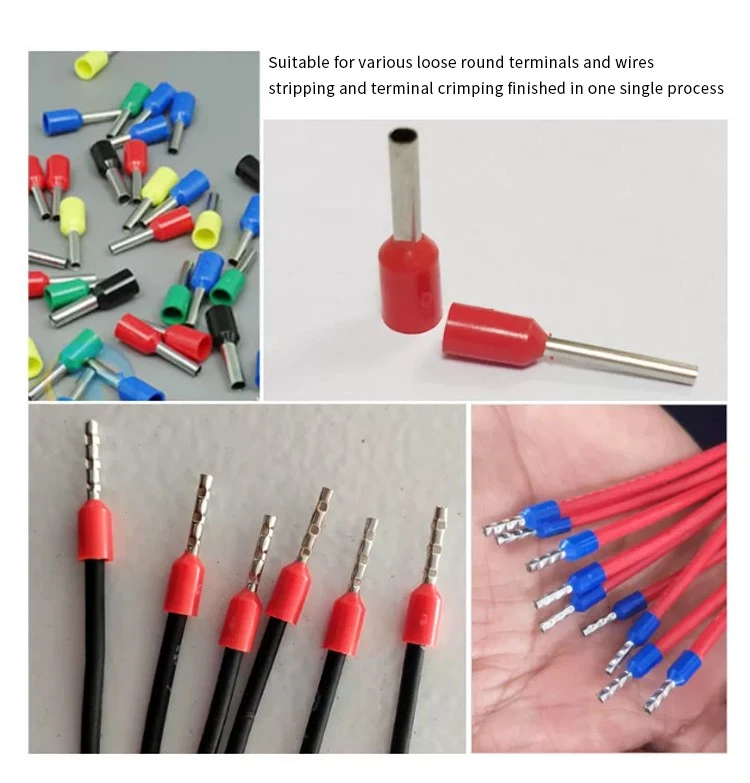

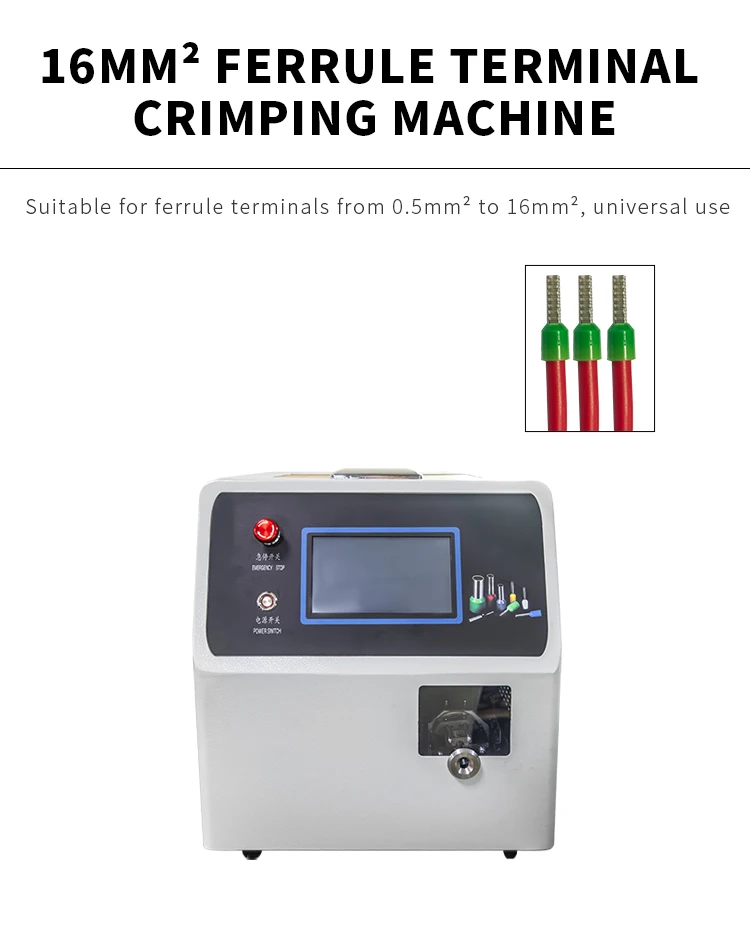

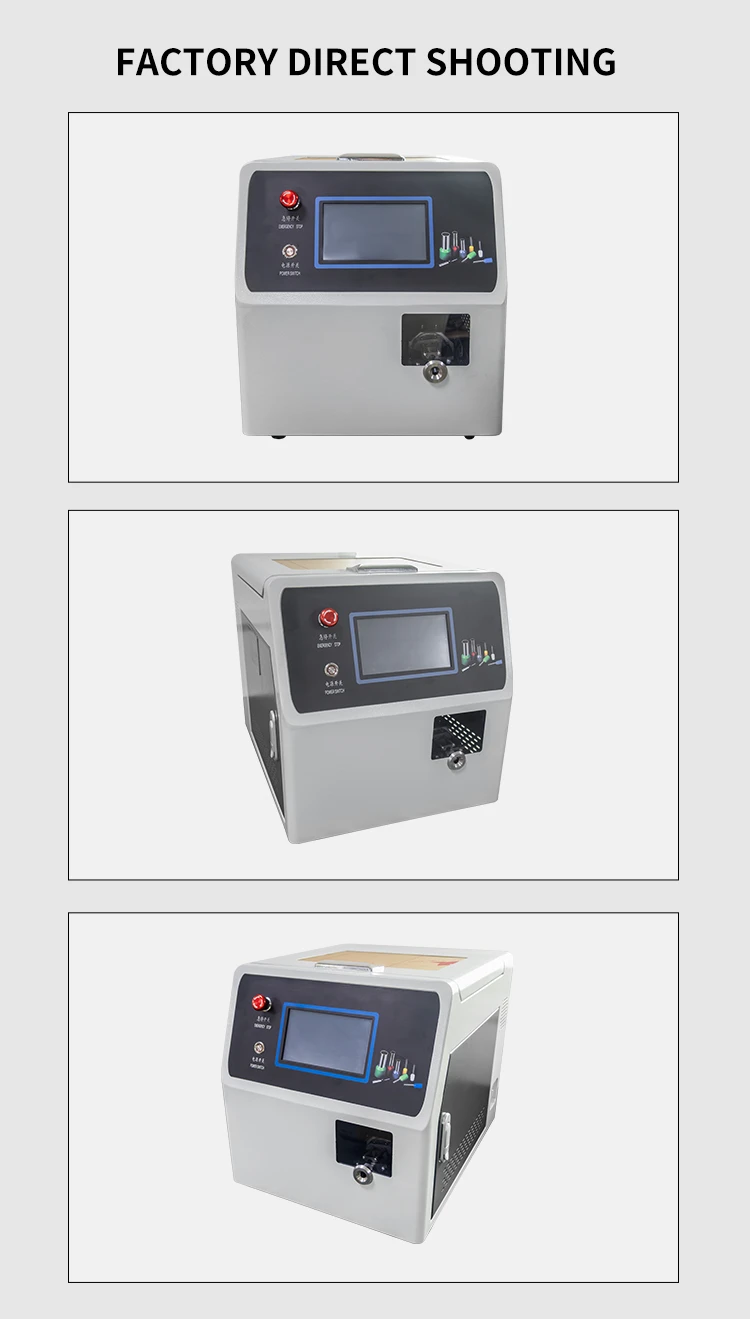

This wire stripping twisting pre-insulated terminal crimping machine is suitable for crimping a variety of loose
tubular terminals onto cables,twisting function to prevent loose conductor when crimping,Not need change crimping dies for different size terminal.
Advantage 1, the main electric-based and pneumatic matching diversification.
2, the overall closed appearance design, mechanical mechanism is compact.
3, machine action flexibility, safe operation.
4,Automatic induction start, fast and convenient.
5, the advantages of high production efficiency.
|

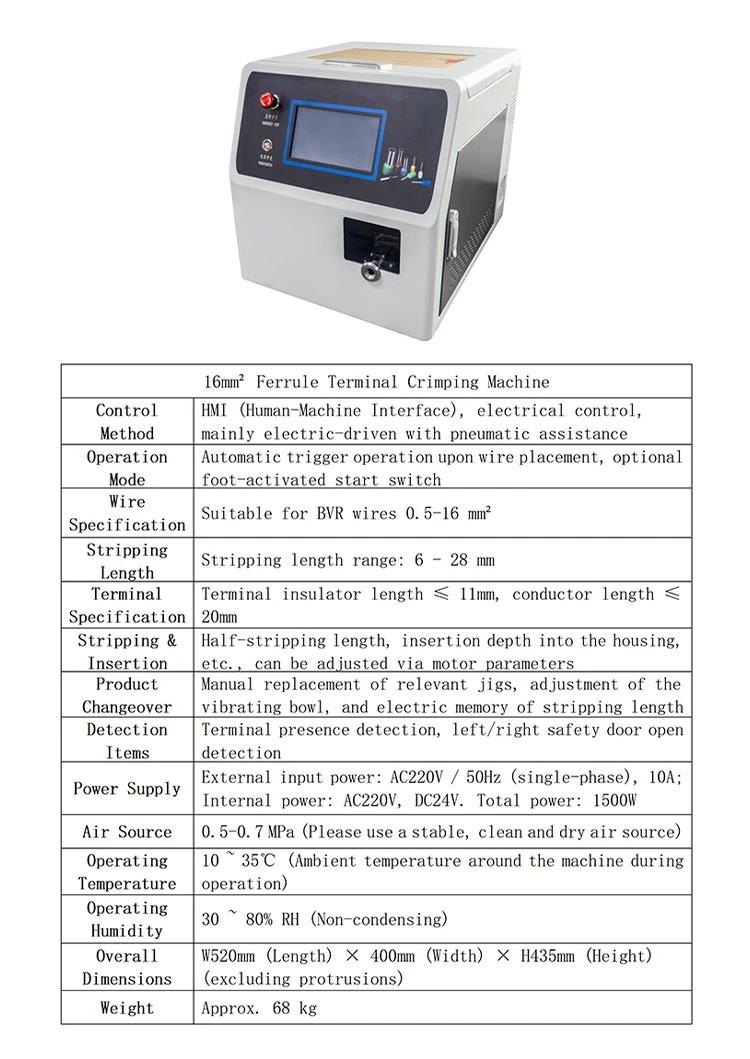

Model
|
XCX-P16
|
|
Control Mode
|
human-machine interface, electronic control, pneumatic control
|
|
Wire Size
|
0.3-16mm2 ( <0.5mm2 , need samples customize and test)
|
|
Tube Size
|
Insulator length <11mm ,conductor length<20mm
|
|
Stripping Length
|
6-30mm
|
|
Production Capacity
|
3.2s /wire
|
|
Air Supply
|
0.5-0.6Mpa
|
|
Power Source
|
AC220V/110V/50/60HZ
|
|
Weight
|
62KG
|
|
Dimensions
|
W360mm×L520mm×H425mm
|
