Products Description

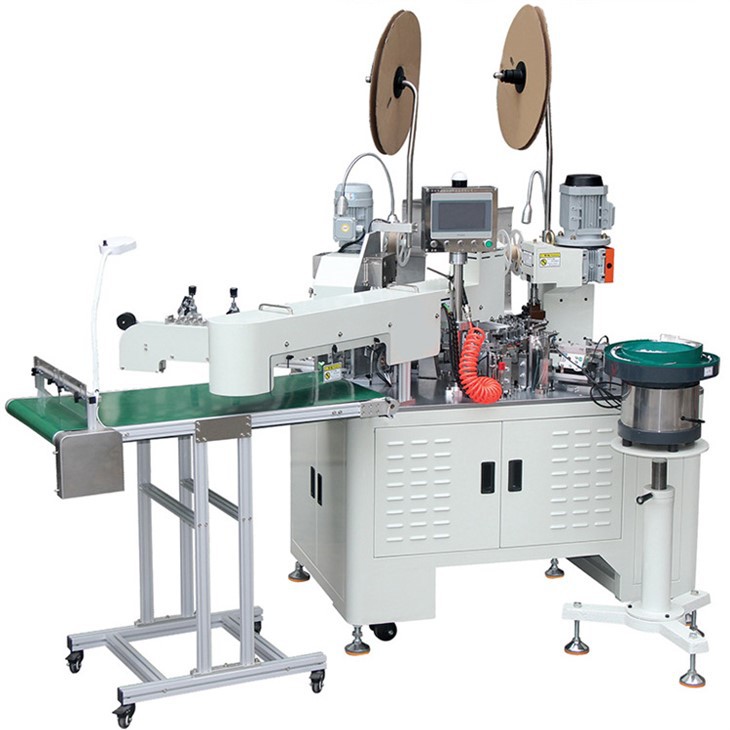

This is a machine with multifunctions, automatic wire crimping machine with wire cutting, peeling, twisting, single end press through the shell, single end stick tin, double end press insert shell, also can distinguish good/defective automaticlly. Powerful, automatic operation, is an efficient wire harness processing equipment.
Products Features
| Functions | Wire cutting, peeling, twisting, single end press through the shell, single end stick tin, double end press insert shell, good/defective distinction |
| Test functions | Wire alarm, wire knotting alarm, tin wire shortage reminder, air pressure alarm, pressure management device, visual detection device, etc |
| Capacity | (Number of terminals x Pin number)6500-13000/ hour (depending on the terminal shell and wire) |
| Processing range | 1.25ZH1.5, PH2.0XH254, 2510SM male and female, etc. (rubber shell range 2Pin-12Pin) Special specifications can consult the manufacturer |
| Processing lenght | 55mm-800mm can be customized |
| Processing cable | AWG16-AWG32 according to cable type |
| Tolerance | 0.2±0.2%L |
| Peeling lenght | A end 1-7mm, B end 1-7mm(special can be customized) |
| Peeling tolerance | ±0.05 |
| Power | 220V/60HZ |
| Maximum power | 1500W |
| Applicable air source | 0.5-0.7MPa( Use a clean, dry air source) |
| Size | L2100xW1450xH1600MM |
| Weight | 500KG |
Advantages:
The PCL programming controller uses Taiwan Airtac spiral wire internally to modify parameters.
Pneumatic components for rods and guide rails, and automatic feeding of vibrating plates ensure neat discharging without jamming.
The material feeding speed is fast, which reduces a lot of labor costs.
1. It can be used as a double-head terminal punching machine, which can punch terminals and insert rubber shells at the A and B ends at the same time.
2. It can be made with a single head and the end is inserted into the plastic case. The A end is inserted into the plastic case and the B end is dipped in tin.
3. Using the same sliding rail, the positioning is accurate, the transmission speed is fast, the life is long, and the operation is smooth.
4. The equipment has an abnormal shutdown alarm function, and the alarm implementation status is displayed on the touch screen.
Sample display:
Our service
Quick delivery
Various logistics modes are available
Free sample testing
We can test for you freely on the multifunction automatic wire crimping machine
Secure payment
100% secure payment
24/7 Support
Dedicated support
Company profile
Our team consists of experienced engineers and professional technicians who are dedicated to designing and manufacturing advanced wire harness equipment to ensure our customers achieve excellence in their production. We are committed to the principles of high quality, efficiency, and customer satisfaction, providing customers with the best wire. We offer excellent after-sales service and technical support to ensure that customers can fully utilize the performance and efficiency of our equipment.
If you need more information about us or have any business cooperation needs, please feel free to contact us.
Our Certificate
FAQ
Q1: Are you trading company or manufacturer ?
A: Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock.or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Can you send me your products catalog with price list?
A: E-Catalog of showing products style is available to offer for your reference. Since specific items results invaries price, please kindly inquiry us with your detailed item.
Q4: What about your warranty?
A: Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q5: Do you test the multifunction automatic wire crimping machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: Is there any installationdirection after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
