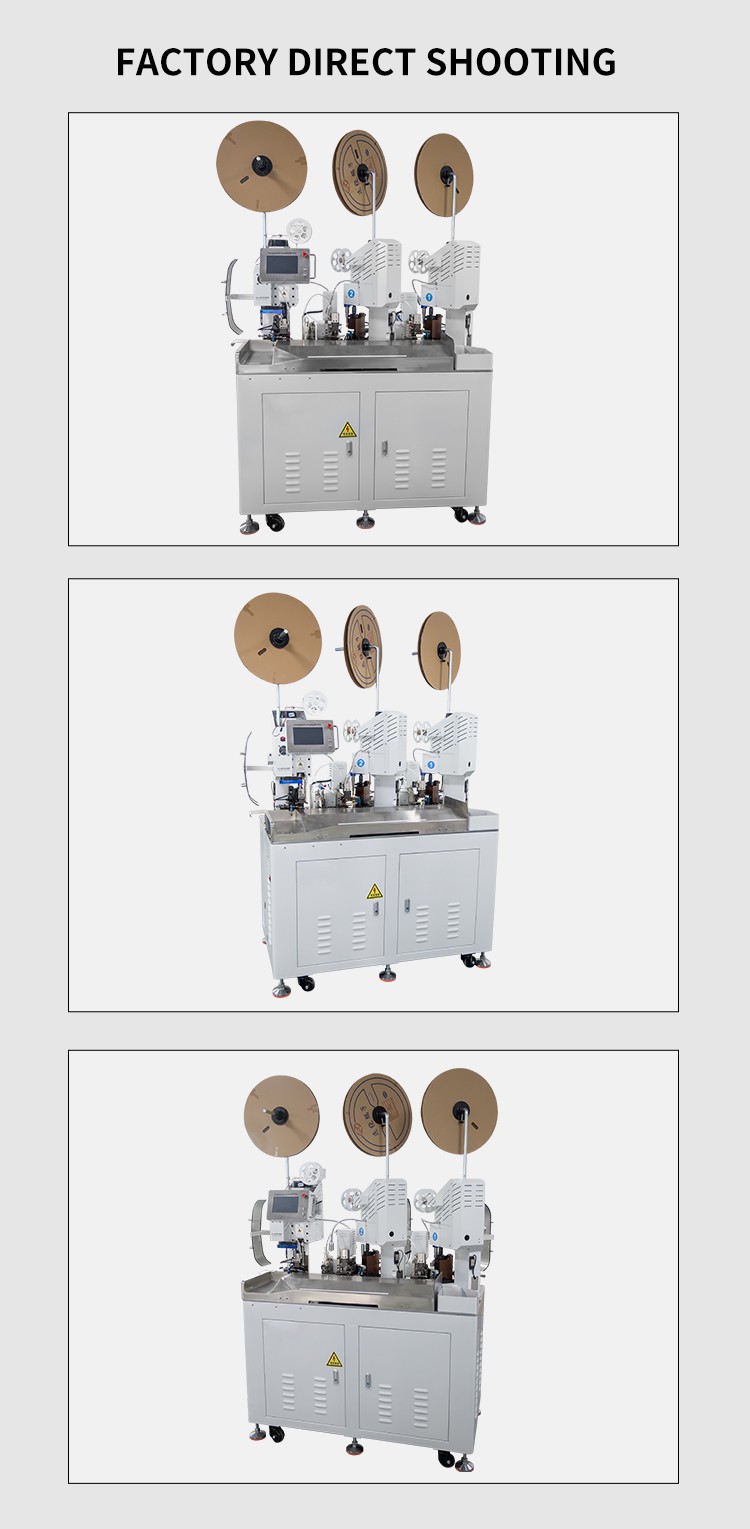

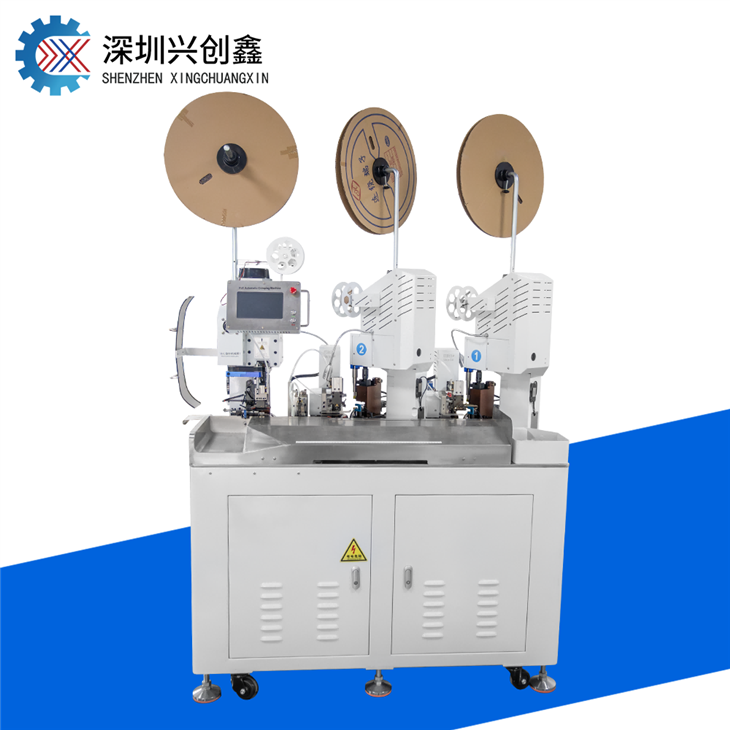

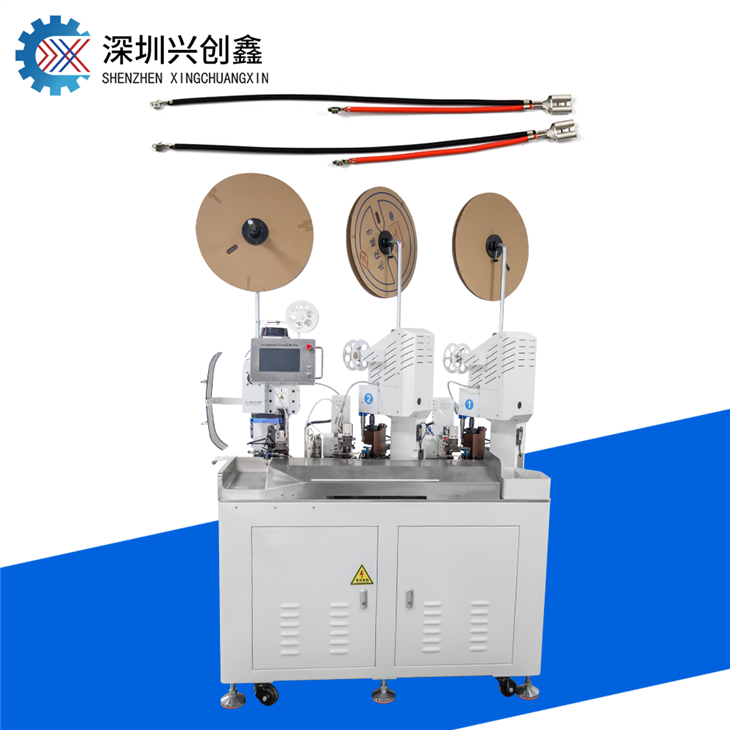

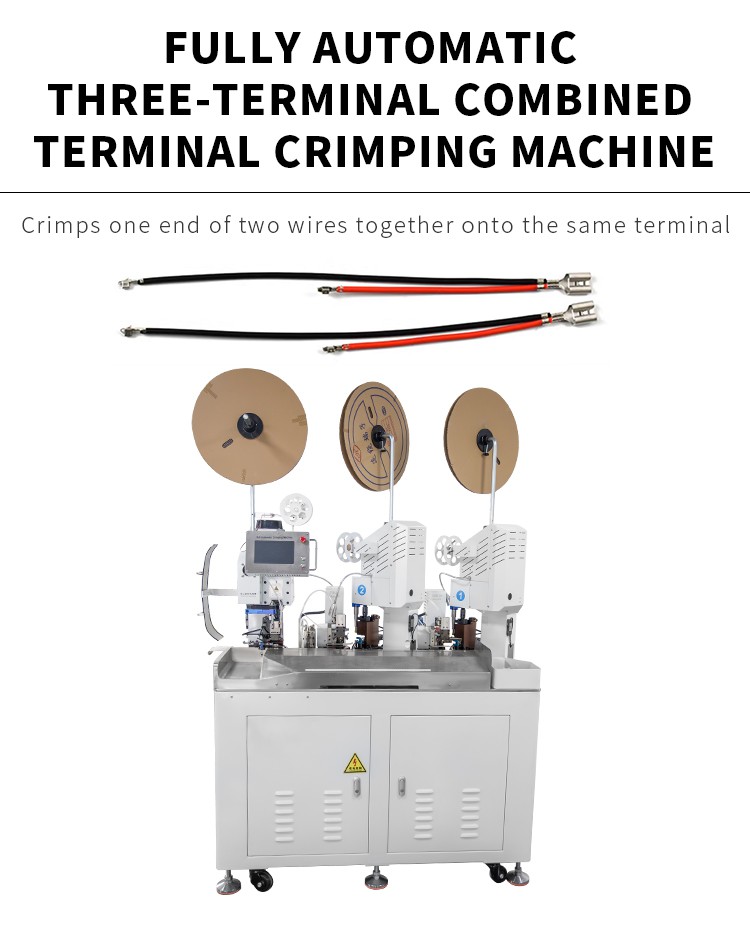

Terminal Crimping Machine for Combining Two Wires
This terminal crimping machine is specifically designed for crimping two wires together into a single terminal, creating a reliable, low-resistance electrical connection. It is widely used in control cabinets, automation equipment, and electrical wiring projects where two wires need to share one connection point.
Key Features
1 Dual-Wire Crimping Capability

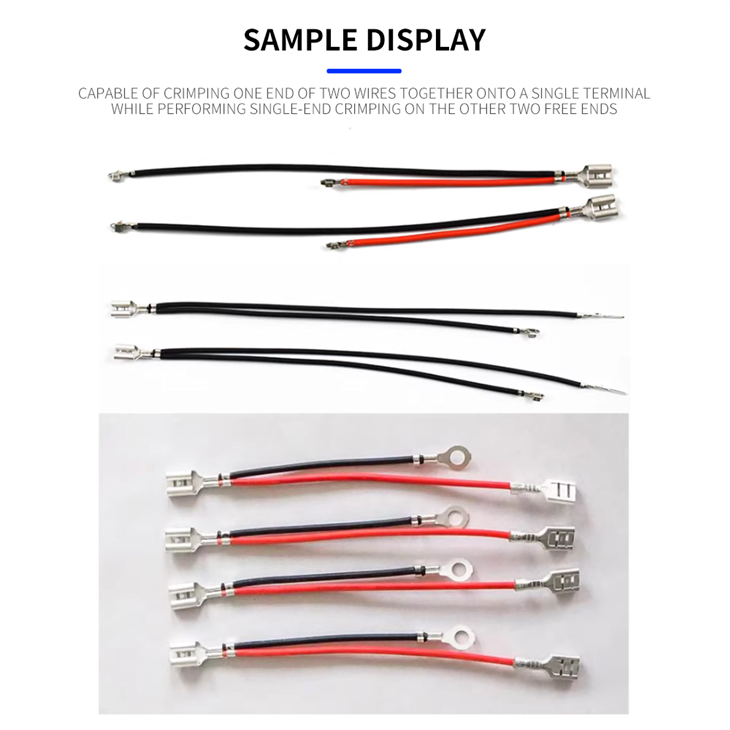

Supports simultaneous crimping of two wires (same or different gauges) into one terminal
Eliminates the need for manual twisting or separate splices, saving time and improving efficiency
Compatible with double-entry insulated ferrules / twin wire terminals (like the "Çift Girişli Kablo Yüksükleri" you saw earlier)
Precision and Consistency
2 Delivers uniform crimp force for every cycle, ensuring consistent crimp quality
Prevents loose connections, cold joints, and high-resistance issues that cause overheating or failure
Protects against vibration, pull-out, and oxidation, extending the service life of the connection
3 Versatile Compatibility
Works with various wire types: stranded copper wires, flexible cables, and multi-strand conductors
Adapts to different terminal sizes: twin wire ferrules, double-entry ring/spade terminals, and splice connectors
Interchangeable dies available to fit different wire gauges (AWG 26-10 common range)
4 Efficiency and Safety
Semi-automatic operation for high-volume production or on-site installation
Built-in safety mechanisms to prevent accidental operation and over-crimping
Eliminates the risk of exposed bare wires, improving electrical safety in the finished assembly
Typical Applications
Control panels, PLC cabinets, and industrial automation wiring
Electrical distribution boxes and power distribution systems
Appliance manufacturing, automotive wiring harnesses, and renewable energy projects
Any application requiring a secure, space-saving connection of two wires to one terminal point
|

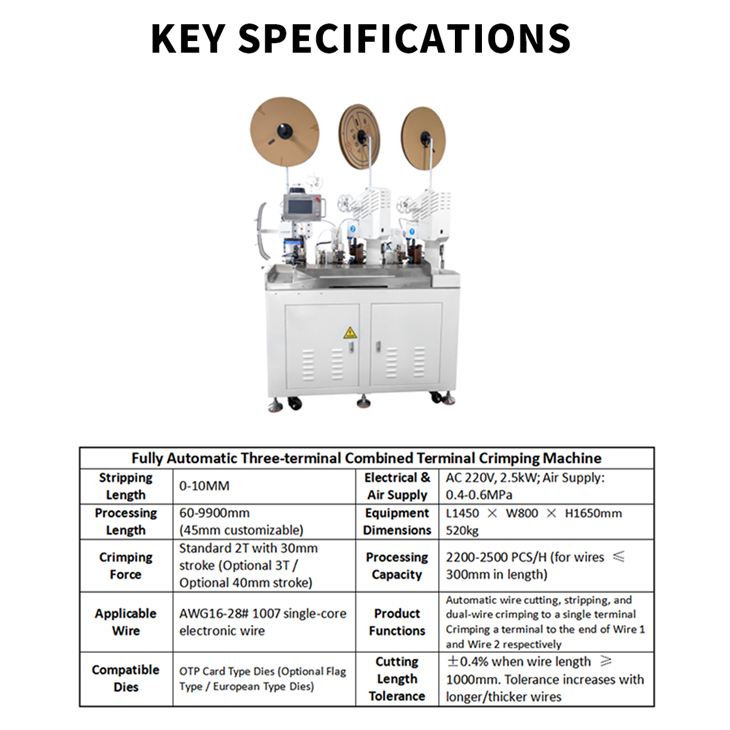

Model
|
XCX-1600-3
|
|
Function
|
Double Wire Combined Terminal Crimping Machine
|
|
Motor
|
6 set servo motor ( leadshine Brand servo motor)
|
|
Applicable wire
|
0.3-1.5mm2 AWG26#-AWG18#
|
|
Cutting length
|
60mm-9999mm Set unit 0.1mm.
|
|
Cutting error
|
+/-0.2mm per meter
|
|
Stripping length
|
0-10mm
|
|
Crimping force
|
2T (3.0t can custom made )
|
|
Crimping stroke
|
30mm(40 can custom made )
|
|
Applicable mold
|
OTP mold ( European applicator and JST applicator custom made )
|
|
production capacities
|
2600-3100pcs/Hours
|
|
Air pressure
|
>0.5MPa (170N/min)
|
|
Power
|
AC220V 50/60HZ, 10A
|
|
Machine Size
|
1700*900*1800mm
|
|
Display
|
Chinese/English
|
|
Machine Main parts brand
|
Taiwan HIWIN screw, Taiwan AirTAC cylinder, South Korea YSC solenoid valve, leadshine servo motor ( China brand ) , Taiwan HIWIN slide rail, Japanese imported bearings.This is a high quality machine
|
