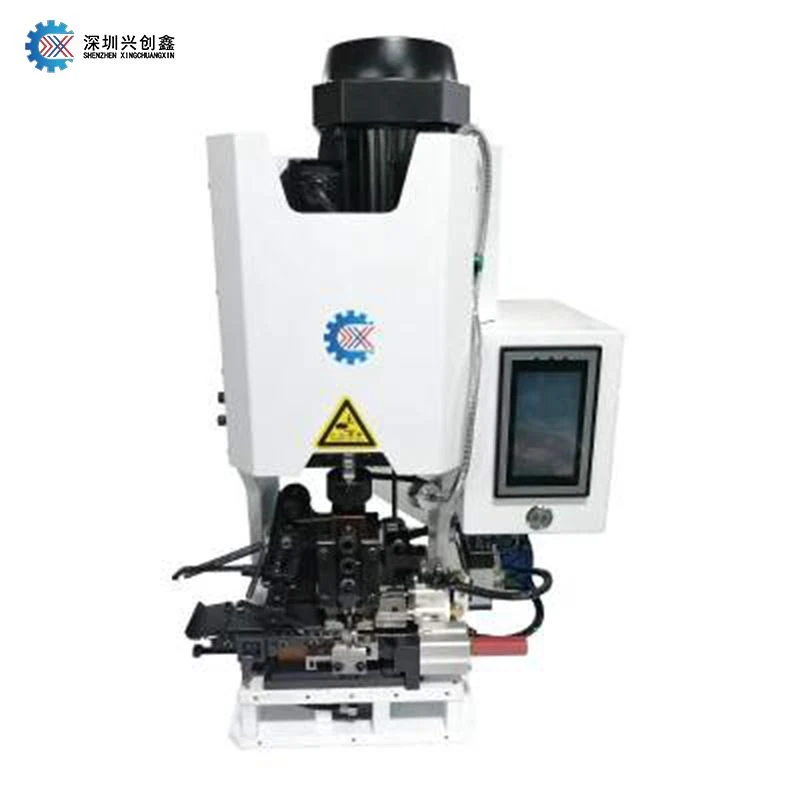

Automatic cable Terminal Crimping Stripping Machine wire stripper and crimper terminal crimping machine
Product features
1.Special for stripping and crimping the inner core of sheathed cable at one time.
2.Adopt advanced frequency conversion technology control, energy saving and environmental protection.
3.Stripping cylinder drive, High-speed and accurate positioning.
4.The waste after stripping is vacuum suctioned, and the work area is clean and tidy.
5.The working speed can be adjusted through the operation panel to adapt to the operator’s proficiency.
Product Specification
|
Product model |
XCX-783 |
|
Name |
wire stripper and crimper machine |
|
Applicable wire diameter |
AWG32-AWG18 |
|
Stripping length |
1-10mm |
|
Stroke |
30mm |
|
Crimping force |
2T |
|
Motor rate |
750W |
|
Air pressure |
0.3-0.4mpa |
|
Size |
530*400*830mm |
|
weight |
50kg |
|
Warranty |
1 year |
Application
The multi-core sheathed cable stripping and ferrules crimping machine is especially designed for processing the core wires of multi-conductor sheathed cable and single wire , just change the crimping applicator for different terminal
company introduction
Additionally, working with Xingchuangxin Wiring Equipment Co., Ltd. gives you access to cutting-edge manufacturing techniques and cutting-edge technologies. This can greatly streamline your production, boosting effectiveness and shortening the time it takes for your products to reach the market. Staying ahead of the competition in today's fast-paced business environment requires agility, and our collaboration can give you the means to do it.
Cost-effectiveness is yet another strong perk. Because of their already established connections with the supply chain, Xingchuangxin Wiring Equipment Co., Ltd. is able to purchase supplies at fair costs. Your business may be able to save money this way without sacrificing the quality of the finished product.
Shipment Package
FAQ
A)What is your company's advantage?
Our company has a professional team, professional production line and good after-sales service.
B)Sample time?
Existing items: Within 5 to 7 days.
C)Can the logo and color be customized?
Yes. We can print your Logo on both the products and the packages. The color of products can be customized if you can meet our MOQ.
D)Does your company have any other services?
Of course, we have good service and good shipping channels.
