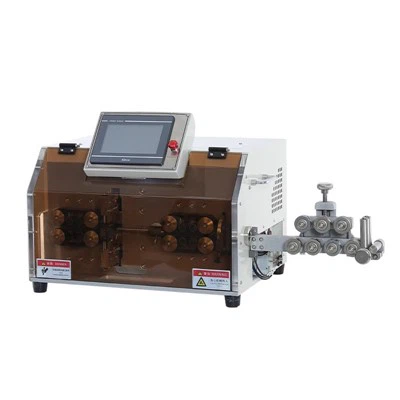

Functions of Multi-core Sheathed Cable Stripping Machine
|
Model |
XCX-907 |
|
Function |
Wire cutting, double-end stripping,middle stripping |
|
Wire range |
1-6mm2 |
|
Strip cores |
2/3/4 |
|
Cutting length |
0.1mm-99999.9mm |
|
Stripping length |
Outer line: head:0.1-250mm tail: 0.1-70mm |
|
Stripping accuracy |
Silent hybrid stepper motor 0.01mm |
|
Intermediate strip |
Can be customized |
|
Capacity |
1000-2000 pcs / h( L=200mm) |
|
Blade material |
Imported tungsten steel/high-speed steel |
|
Power |
AC110V/220V 50/60HZ |
|
Body size |
470mm*450mm*350mm |
|
Body weight |
32kg |
|
Remark function |
Automatic entry / exit, timing start, jog adjustment |
Multi-layer StrippingPrecisely strips the outer protective sheath, inner insulation layers and shielding layers of multi-core cables in one or multiple passes, without damaging the conductor cores or inner wire insulation.
Versatile CompatibilityAdapts to various multi-core cable types (PVC, rubber, Teflon sheathed cables) and different cross-sectional areas, with adjustable stripping length and depth for customized processing needs.
High-efficiency OperationFeatures semi-automatic or fully automatic feeding, positioning and cutting. It supports batch processing, significantly reducing manual labor and improving the overall stripping efficiency of wire harness production lines.
Precision & Safety ProtectionEquipped with a high-precision blade and positioning system to ensure consistent stripping quality; built-in safety sensors stop the machine instantly if anomalies like cable jamming occur, protecting both the equipment and operators.
Easy Adjustment & MaintenanceThe blade and feeding mechanism can be quickly adjusted for different cable specifications; the detachable design makes daily cleaning and blade replacement simple and convenient.
