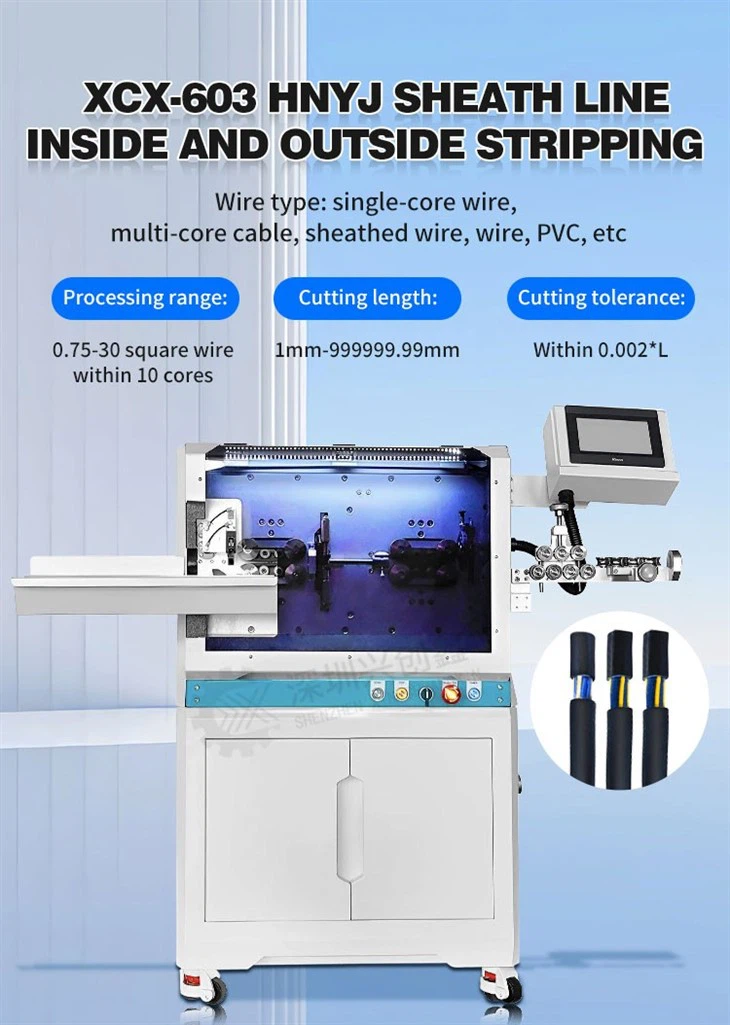

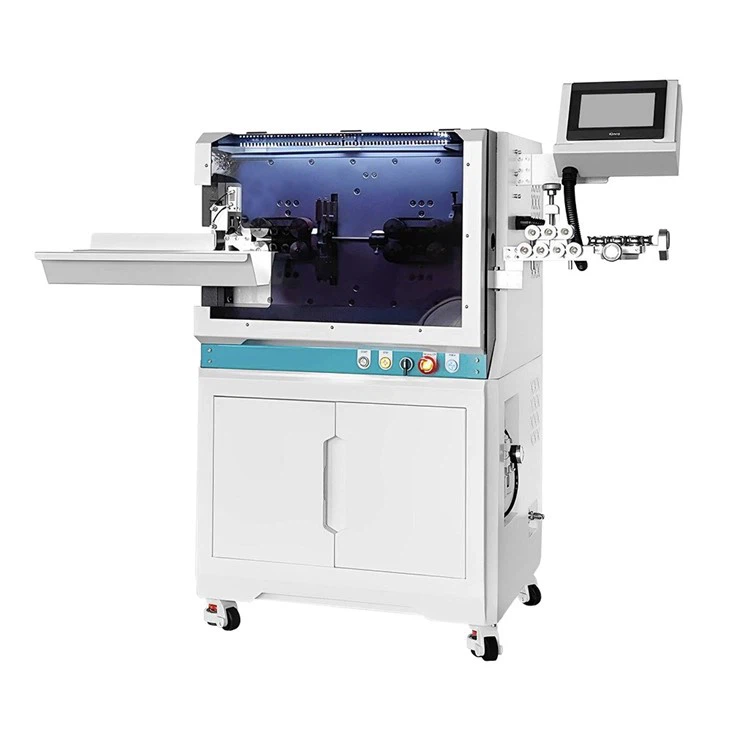

Fully Automatic Multi-layer Cable Stripping Machine

Model

FW-603 HY inside/outside sheathed wire stripping, with table

Display Mode

7-inch LCD interface

Functions

①Single-core wire, multi-core cable, shielded cable, fully automatic fixed-length cutting and stripping;

② For multi-core sheathed cables, the outer sheath is stripped and the inner core wires are stripped and cut at one time.

Wire Type

Single-core wire, multi-core cable, sheathed wire, PVC, etc.

Processing Range

0.75 -- 30 square (including sheathed wire with less than 10 cores)

Cutting Length

1mm-999999.99mm

Cutting Tolerance

Within 0.002*L (L=cutting length)

Internal and external stripping length

Front stripping: outer sheath completely stripped 10-200mm, inner core wire 1-50mm

After stripping: outer sheath completely stripped 10-80mm, inner core wire 1-50mm

Maximum diameter allowed

Φ18

Blade material

High quality high speed steel

Productivity (times/hour)

3500 PCS/hour, (sheathed cable 900pcs/H) according to the length and size of the cable

Drive mode

16-wheel drive (feeding stepper motor, tool holder servo motor); £ servo feeding is optional

Wire feeding method

Belt feeding, no embossing or scratching on the cable. (With stripping and pressurizing function)

Lifting operation mode

Digitally adjustable pressure roller height

Power supply

AC220V 50/60Hz; Optional 110V 50/60Hz

Gas source

0.5Mpa clean air source

Dimensions (length*width*height) mm

707*590*1140

Net weight

140 kg

Remark

Maximum cutting capacity 50 square millimeters
