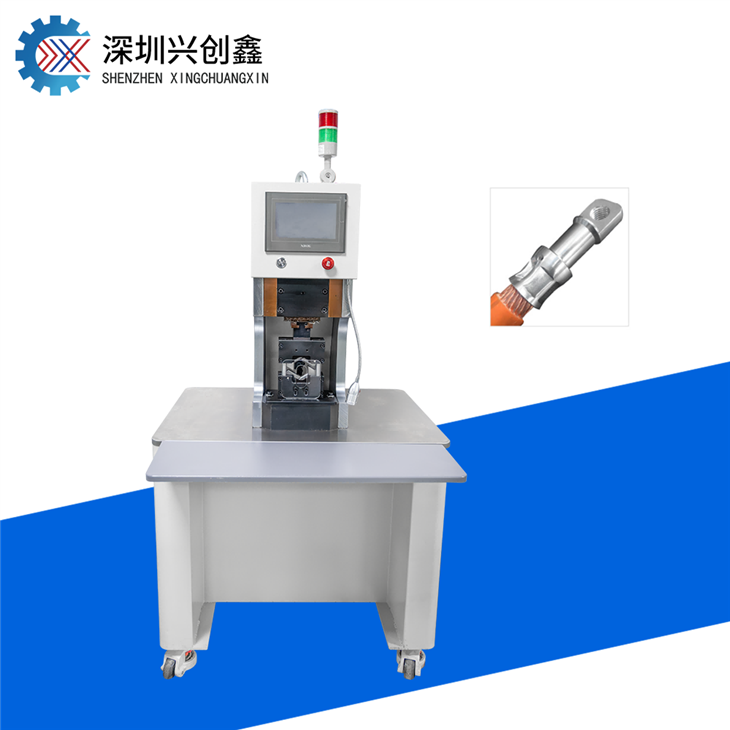

· Servo motor + driver,high-precision operation and fast response
· Hardened blades make the terminal shape more beautiful and with a longer service life
· Heavy steel plate assembly,the whole machine weight up to 500kg ,small vibration and more stability
|
Model |
XCX-30T |
XCX-40T |
|
Function |

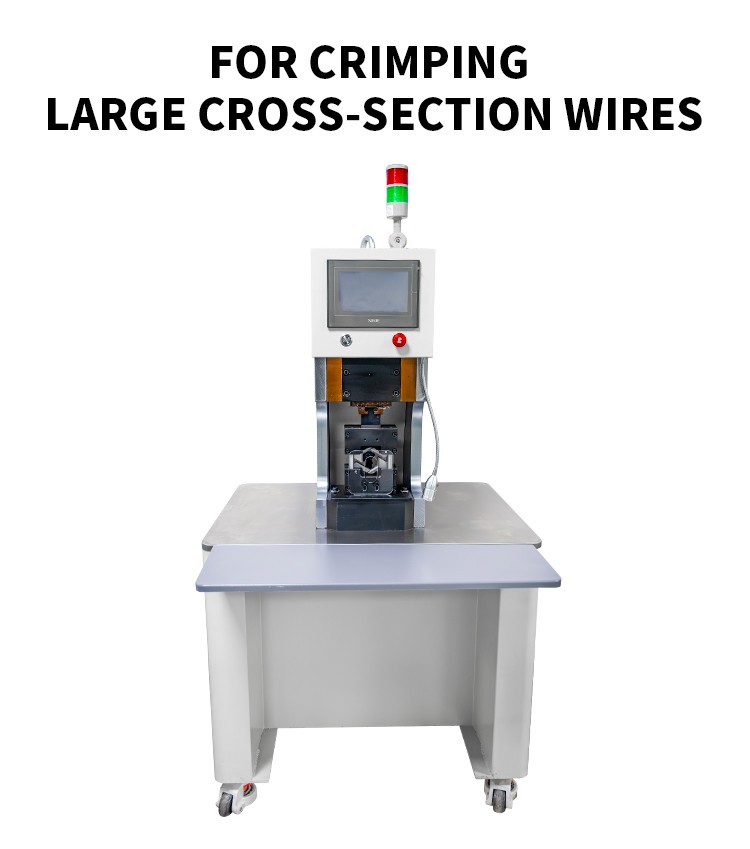

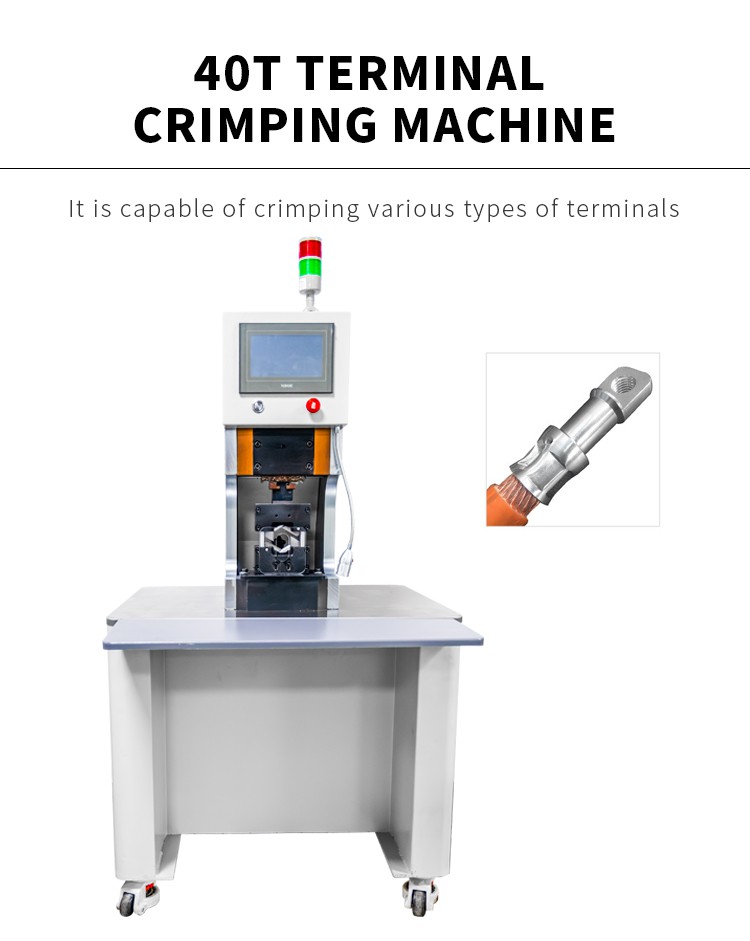

Large Cable Terminal Crimping |
|
|
Voltage |
220V 50-60HZ (Customize 110V) |
|
|
Crimping Force |
30T |
40T |
|
Applicator Wire |
10-185MM2 (Also consider the thickness and hardness of the terminal) |
10-300MM2 (Also consider the thickness and hardness of the terminal) |
|
Applicator Mold |
Hexagonal Mold,B-shape Mold,Square shape mold ect. |
|
|
Stroke |
40MM |
40MM |
|
Start Mode |
Manual/Pedal |
|
|
Control Mode |
Touch Screen |
|
|
Drive Mode |
Electric,Servo Motor,no need air |
|
|
Efficiency |
500-1000 pcs/h (Depend on manual speed) |
|
|
Crimping height |
Can be set by touch screen |
|
|
Size |
750*550*1450MM |
850*650*1470MM |
|
Weight |
350KG |
400KG |
|
Remark |
Can be customized according to customer needs, MOQ=1.contact us |
|
|
Apply For |

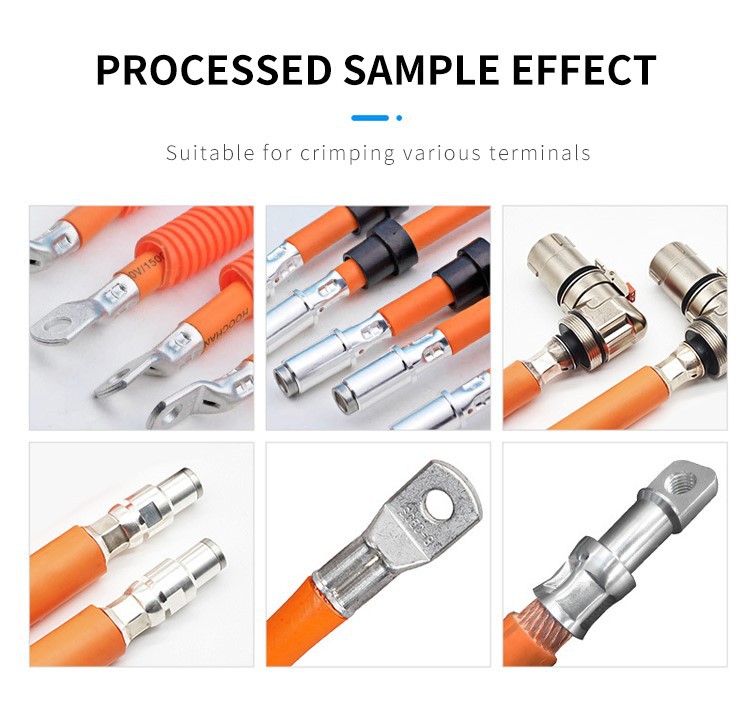

Suitable for all kinds of new energy charging pile wire harness terminal crimping,Support Customization |
|
